Aesthetic and strong

Made for roofs and wall claddings.

Mega Roof sheets have an overall width of 1060mm, sheet length up to 30 ft and steel base of 340-550 MPA. High performance paints protect against UV rays and keep colours lasting longer than usual zinc-coated roofs.

Special chemical treatment gives Mega Roof its water repellent, anti-fading and cooling properties. The specially designed 3-Rib act as anti-capillary grooves for leak-proof roofing and extra strength.

Technical strengths

Feature highlights.

✓
Overall width
1060mm overall width for broad, efficient coverage.
✓
Sheet length
Sheet length available up to 30 ft.
✓
Steel base
340-550 MPA steel base for strength and roofing confidence.
✓
Paint protection
High performance paints protect against UV rays and fading.
✓
Surface treatment
Water repellent, anti-fading and cooling properties.
✓
3-Rib profile
Anti-capillary 3-Rib grooves support leak-proof performance.
✓
Installation
Quick and easy installation across common roof formats.
✓
Applications
Roofs and wall claddings for homes, institutions, businesses and industry.

PPGL Core

Pre-painted Galvalume steel core for strength and corrosion resistance.

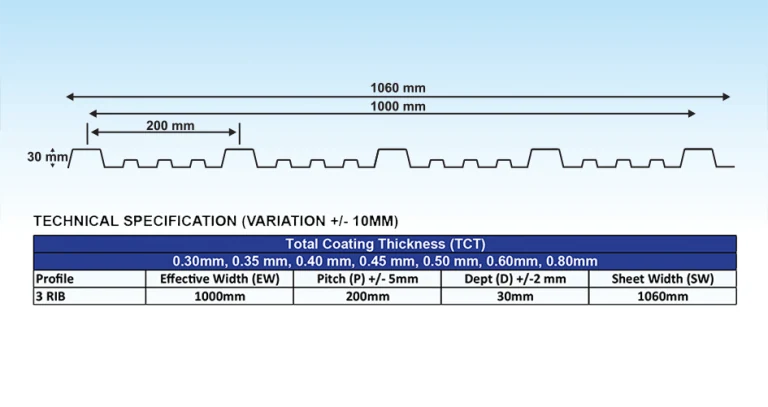

Technical Specification

Precision material dimensions for roofing and cladding fit.

Tile Profile Sheet

Architectural profile with a premium finished appearance.

Quality Mantra

Premium Quality at Affordable Rates

Mega Roof operates on a zero-compromise raw material strategy to deliver the longest lifespan in the high-rainfall North East region. We use JSW & Tata steel base coils with Aluminium-Zinc coatings to guarantee 2-3x greater corrosion resistance.

Testing Lab

In-House Quality Check & Testing Equipment

Our Kamalpur facility is equipped with dedicated lab instruments to run regular material stress audits before dispatch.

T-Bend Tester

Used to test the flexibility and coating adhesion by bending the sheet at a 180° angle, ensuring no paint peeling occurs during custom site bending.

Digital Micrometers

Provides precision sheet thickness measurements (from 0.30mm up to 0.55mm) to guarantee that customers get the exact thickness they order.

Coating Mass Gauges

Audits the Al-Zn alloy coating mass (GSM) to verify standard weather protective coverage across the entire surface of the Galvalume coil.

Workflows

Our 6-Step Quality Control Process

We enforce strict quality control at every phase of handling, from inbound coils to final shipping logs.

Step 1

Coil Thickness Verification

Inbound coils from JSW/Tata are measured with digital micrometers to guarantee base metal thickness (BMT).

Step 2

Adhesion & Bending Checks

Samples undergo 180-degree T-bend tests in our lab to audit paint adhesion and check for structural cracking.

Step 3

GSM Coating Audit

Magnetic and chemical gauges verify the zinc-aluminium coating thickness is consistent across all coil edges.

Step 4

Profiling Alignment Control

Profiling lines are audited dynamically to ensure the leak-preventing 3-Rib anti-capillary groove is perfectly formed.

Step 5

Visual Defect Inspection

Finished sheets are inspected visually under high lighting to check for surface scratch marks, peeling, or color shifts.

Step 6

Load Deflection Check

Supports loading check: verification of structural deflection limits against standard purlin spacing values.

Project ready roofing

Build with superior strength, colour stability and leak protection.

Talk to Mega Roof for roofing sheets, gutters, ventilators and complete roofing accessories.
